Soil Types

Soil is the loose, upper layer of earth in which plants grow.

Soil is a mix of organic material, clay, silt, sand and rock particles laying on top of the bedrock.

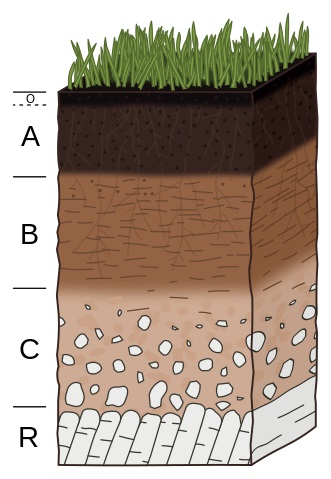

Soil Horizons

Soil horizons are the distinct layers of a soil profile:

NameDescription
o - HumusOrganic material
A - TopsoilWhere plants grow
B - SubsoilWhere the roots go
C - ParentOriginal rock deposit
R - BedrockThe solid rock

Stagnogley


Soil Particles

Scientists have classified soil particles into the groups: Clay, Silt, Sand, Gravel and Pebbles.

NameSize in mmDescription
Clay< 0.002 mmFormed by weathering and erotion of rocks. Clay particles are very small. Clay tend to pack, so water cannot drain and air cannot penetrate.
Silt0.002 - 0.050 mmRock dust formed on the bottom of a water body. Silt particles are medium sized and have properties in between those of sand and clay.
Sand0.050 - 2 mmBroken rocks and minerals (Silicia quartz). Sand particles are large. Sand holds little water but allows good aeration.
Gravel2 - 4 mmSmall, rounded stones, often mixed with sand.
Pebbles4 - 64 mmRounded stones found on a beach or in a river.

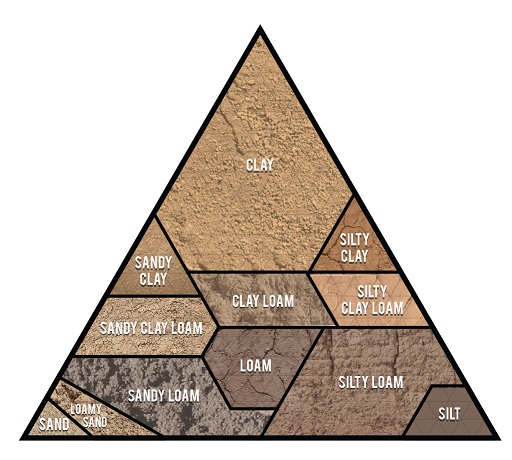

Soil Textures

Soil Types

Image from USDA Natural Resources Conservation

NameClaySlitSand
Clay80%10%10%
Sandy Clay50%0%50%
Silty Clay50%50%0%
Loam20%40%40%
Silty Loam20%70%10%
Sandy Loam20%10%70%
Silt10%80%10%
Sand10%10%80%

Clay

Clay soils have the finest particles and are known for their water retention capacity.

Clay soils contain more than 30 percent fine clay particles. Some clays swell and shrink as they wet and dry, which can add to soil fertility.

Clay soils take longer to warm up in spring. Wet clay soils are easily damaged when dug or walked on.

Drought is much less damaging on clay soils than others soil types.

Clay

Wet Clay

Dry Clay

Dry Clay

Red Clay

Red Clay

Pros: Holds water and nutrients the longest of all soil types. Less susceptible to drought.

Cons: Prone to compaction. Callenging for root penetration. Poor drainage.


Silt

Silty soils have medium-sized particles, smaller than sand, larger than clay.

Silt

Pros: Fertile. Water retaining. Less susceptible to drought.

Cons: Poor drainage. Prone to contration. Similar to clay.


Sand

Sand

Pure Sand

Sand

Loamy Sand

Sand

Coarse Sand

Sand is a granular material composed of mineral particles smaller than gravel and coarser than silt.

Sand warms up quickly in the spring, aiding early vine growth, but can dry out quickly.

Pros: Great drainage. Mineral Rich. Heat retaining. Phylloxera free.

Cons: Poor fertility. Susceptible to drought.


Loam

Loam is a combination of clay, silt and sand.

Sandy Loam

Pros: Good drainage. Very fertile. Retains nutrients and water.

Cons: Too fertile for vineyards.


Gravel

Gravel are aggregates of more or less rounded rock fragments coarser than sand.

Gravel Gravel Gravel

Pros: Good drainage. Retains heat.

Cons: Infertile. Poor water retention.


Pebbles

Pebbles are small stones made smooth and round by the action of water or sand.

Pros: Great drainage. Retains heat.

Pebbles

Cons: Infertile. Roots have to dig deep to find nutrients. No water retention.

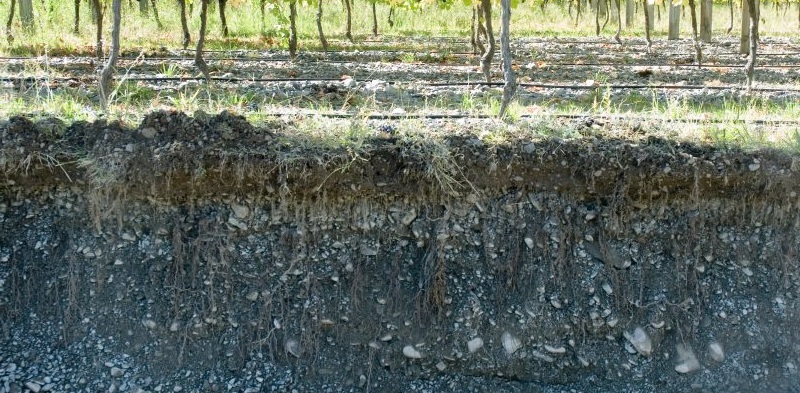

Vineyard Soils

Alongside climate and grape selection, vineyard soils play a crucial role in the quality and characteristics of wines. Different soils provide us with the different regions and areas that produce the world most famous wines.

Soils influence everything important for grapevine health and grape quality:

It is also important to know that soil can be different across wine-growing regions. It can even be different across a single vineyard.

Most vineyards are a blend of stones, gravel, top soil and deep soil.

Vineyard Soil Soil Types
